Image REF# Make & Model DESCRIPTION

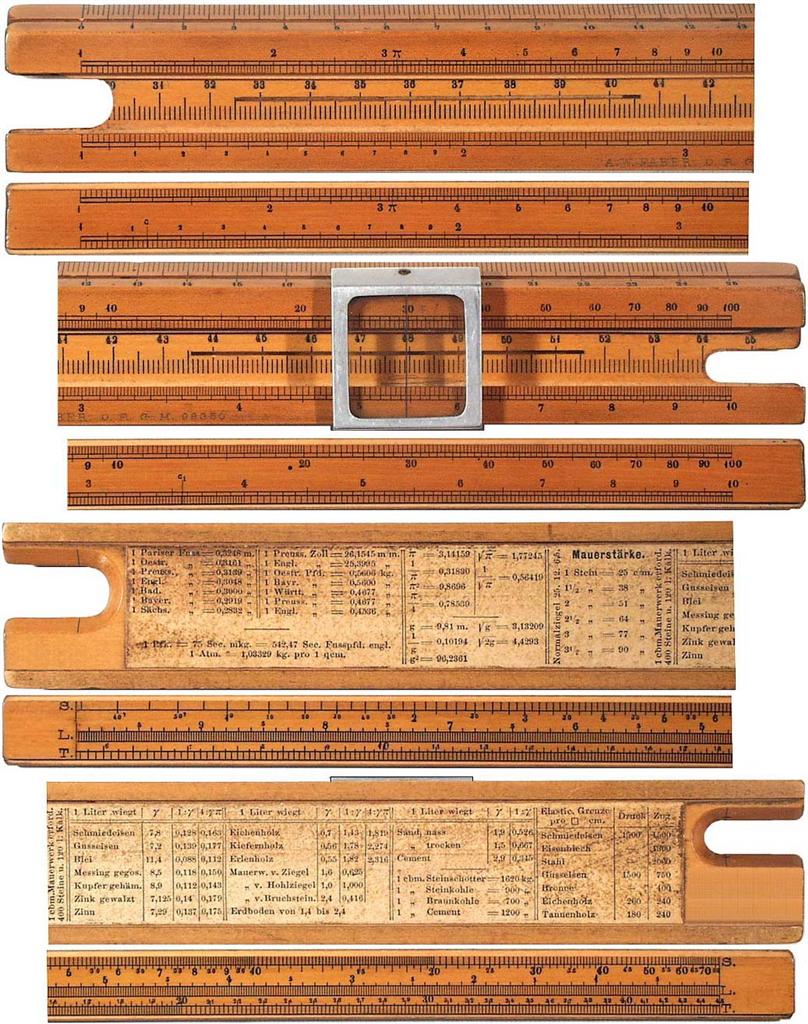

0838
Faber Castell
Generic slide rule of all wood
280x33x9 mm (Before 1900)
Front Scales: 25cm // A [ B C ] D || 28cm
Well: 30-55cm
Back Scales: [ S L T ]

0839
Faber Castell (Marked Made in Bavaria)
Generic slide rule of wood/plastic
260x33x9 mm (Before 1900)
Front Scales: 10inch // A [ B C ] D || 26cm
Well: 27-51cm
Back Scales: [ S. L. T. ]

0840
Faber Castell
Generic slide rule of all wood/plastic laminate
260x33x9.7 mm
Front Scales: 25cm // A [ B C ] D || 26cm
Well: 26-51cm
Back Scales: [ S L T ]

0841
Faber Castell - "ELIN" (Aktiengesellschaft für elektrische Industrie)
Generic slide rule of wood/plastic
122x22x8 mm
Front Scales: 10cm // A [ B C ] D || 12cm
Back Scales: [ S L T ]

5787
Faber Castell, Pocket
Generic slide rule of wood/plastic
Front Scales: 10cm || A [ B C ] D || 12cm
Back Scales: [ S L T ]

0854
Faber Castell 1/22 Disponent
Generic slide rule of wood/plastic
300x39x11 mm
Front Scales: 27cm // units KZ [ T p%(Val.) T(E) ] Z(V) L || s £ d £
Back Scales: [ LL1 LL2 % C ]

0865
Faber Castell 1/28 Bivius
Generic slide rule of wood/plastic
300x39x11 mm
Front Scales: 27cm lg // K KZ [ T p%(Val.) T(E) ] Z(V) A || s £ d £
Back Scales: [ LL1 LL2 % C ]

5756
Faber Castell 1/38 (Stadia)
Generic slide rule of wood/plastic
298x39x11 mm
Front Scales: 27cm // L A [ B CI C ] D P || sin tg
Well: 31-59cm
Back Scales: [ 1-cos2 1) sin.cos cos2 2) ]

0866
Faber Castell 1/38 400g
Generic slide rule of wood/plastic
298x39x11 mm
Front Scales: 27cm // L A [ B CI C ] D P ] sin tg
Well: 31-59cm
Back Scales: [ 1-cos2 1) sin.cos cos2 2) ]

0879
Faber Castell 1/54 Darmstadt
Generic slide rule of wood/plastic
300x39x11 mm
Front Scales: 27cm lg // K A [ B CI C ] D P || sin tg
Well: 34-56cm
Back Scales: [ LL1 LL2 LL3 ]

0884
Faber Castell 1/60
Generic slide rule of wood/plastic
300x38.5x10 mm
Front Scales: 27cm // A [ B CI C ] D || 1:25
Back Scales: [ S L T ]

1169
Faber Castell 1/60/360
Generic slide rule of wood/plastic
300x38.6x11 mm
Front Scales: 10inch // A [ B C ] D || 30cm
Well: 33-60cm
Back Scales: [ sin lg tg ]

1172
Faber Castell 1/61/361
Generic slide rule of wood/plastic
300x39x11 mm
Front Scales: 10inch // A [ B CI C ] D || 30cm

1175
Faber Castell 1/78/378
Electrical slide rule of wood/plastic
300x39x10.9 mm
Front Scales: 27cm // LL2 A [ B C ] D LL3 || 1:25
Well: #Dynamo Motor Volt#
Back Scales: [ sin lg tg ]

0895
Faber Castell 1/87 Rietz
Generic slide rule of wood/plastic
300x39x11 mm
Front Scales: 27cm // K A [ B CI C ] D L || 1:25
Back Scales: [ S ST T ]

1176
Faber Castell 1/87/387 Rietz
Generic slide rule of wood/plastic
300x39.5x11 mm
Front Scales: 27cm // K A [ B CI C ] D L || 1:25
Well: #34-60cm#
Back Scales: [ sin sin/tg tg ]

1689
Faber Castell 1/92
Generic slide rule of plastic
300x39x10 mm
Front Scales: 10inch // LL2 A [ B CI C ] D LL3 || K
Back Scales: [ sin lg tg ]

1177
Faber Castell 1/92/392
Generic slide rule of wood/plastic
299x39x11 mm
Front Scales: 27cm // LL2 A [ B CI C ] D LL3 || K
Back Scales: [ S L T ]

1178
Faber Castell 1/94/394
Generic slide rule of wood/plastic
300x39x11 mm
Front Scales: 27cm // K A [ B C ] D L || 1:25
Back Scales: [ sin sin/tg tg ]

0910
Faber Castell 1/98 Elektro
Electrical slide rule of wood/plastic
299x39x10.8 mm
Front Scales: 27cm // LL2 A [ B CI C ] D LL3 || K
Well: #Dynamo-Motor n=% Volt#
Back Scales: [ sin lg tg ]

1179
Faber Castell 1/98/398 Elektro
Electrical slide rule of wood/plastic
300x39x10.5 mm
Front Scales: 27cm // LL2 A [ B CI C ] D LL3 || K
Well: #Dynamo-Motor Volt#
Back Scales: [ sin lg tg ]

0913
Faber Castell 1/98m Elektro
Electrical slide rule of wood/plastic
300x39x11 mm
Front Scales: 27cm // LL2 A [ B CI C ] D LL3 || K
Well: #Dynamo-Motor n=% Volt#
Back Scales: [ sin lg tg ]

0851
Faber Castell 10 Klawun
Generic slide rule of wood/plastic
300x30x10 mm
Front Scales: K A [ B R C ] D L
Back Scales: [ sin sin/tg tg ]

3123
Faber Castell 11/87
Generic slide rule of wood/plastic
300x38x9 mm
Front Scales: 27cm // K A [ B CI C ] D L || 1:25
Well: 33-56cm
Back Scales: [ sin sin/tg tg ]

1003
Faber Castell 11/87 K
Generic slide rule of wood/plastic, 300x38.5x9.5 mm Front Scales: 27cm // K A [ B CI C ] D L
Back Scales: [ sin sin/tg tg ]

1128
Faber Castell 111/22 Disponent
Generic slide rule of plastic
298x49.2x7 mm (1957)
Front Scales: 27cm // units % DF [ CF Val E ] V L sh d £ £
Back Scales: [ LL1 LL2 % C ]

1131
Faber Castell 111/38 Tachymeter 400g
Generic slide rule of plastic
300x49x7 mm
Front Scales: 27cm // L A [ B CI C ] D P S T
Back Scales: [ 1-cos2 1) sin-cos cos2 2) ]

1133
Faber Castell 111/48 Machinenzeit (speeds and feeds)
Log/tech slide rule of plastic
299x49x7.8 mm
Front Scales: 27cm // PS Std, PS min [ 2) m/min ] D 4) 5)
Back Scales: [ A 6) CI C 7) ]

1138
Faber Castell 111/66 Demegraph (Printer's Slide Rule)
Generic slide rule of plastic
299x49x7 mm
Front Scales: 27cm // Ø DF [ CF CI C ] D DIN (paper sizes) 3scales
Back Scales: 0-44 [ LL1 LL2 % C ] O-44

1143
Faber Castell 111/87 A Rietz Addiator
Generic rule/addiator of plastic
300x42x8 mm
Front Scales: 10inch // K A [ B CI C ] D L
Back Scales: [ S ST T ]
Back Calculator: Addition and Subtraction (use with stylus)

1141
Faber Castell 111/87 Rietz
Generic slide rule of plastic
299x39x7 mm
Front Scales: 27cm // K A [ B CI C ] D L
Back Scales: [ sin sin/tg tg ]

1147
Faber Castell 111/98 Elektro
Electrical slide rule of plastic
300x49x7 mm
Front Scales: 27cm // LL2 A [ B CI C ] D LL3 Dynamo-Motor h=% Volt || K
Back Scales: [ S L T ]

1155
Faber Castell 157/80 Mentor-Fix
Generic slide rule of plastic
299x39.7x5.7 mm
Front Scales: 27cm // A DF [ CF CIF CI C ] D K

1157
Faber Castell 157/87 Rietz
Generic slide rule of plastic
299x39.8x5.5 mm
Front Scales: 27cm // K A [ B CI C ] D L
Back Scales: [ S ST T ]

1159
Faber Castell 157/89 Log Log
Generic slide rule of plastic
300x49x5.5 mm
Front Scales: 27cm // K A [ B L CI C ] D S ST T1 T2
Back Scales: [ LL2 S' LL3 ]

1160
Faber Castell 163/81 Novo Mentor
Generic slide rule of plastic
172x38x3.5 mm
Front Scales: A (K|Z) DF [ (T)CF CIF (P%)CI (T)C ] (Z)D K
Back Scales: L T1 T2 [ S CI C ] D S ST

1163
Faber Castell 167/87 Rietz
Generic slide rule of plastic
158x32x4.4 mm
Front Scales: 14cm // K A [ B CI C ] D L
Back Scales: [ S ST T ]

1174
Faber Castell 176066 Typometer (linotype gauging rule)
Other table of plastic, 310x105x1 mm (1984)
non-logarithmic

0915
Faber Castell 2/31 Stahlbeton (Reinforced)
Concrete slide rule of plastic
331x48x5 mm
Front Scales: K T1 T2 A [ B BI CI C ] D ST S L
Back Scales: fe [ xfeh x/3 M ] b X
Cursor lens has special nomograph curves

0917
Faber Castell 2/82
Generic slide rule of plastic
330x48x5 mm
Front Scales: 25cm T1 T2 A [ B BI CI C ] D P S 10INCH
Back Scales: LL03 LL02 LL01 K [ K' L ST CF ] DF LL1 LL2 LL3

0923
Faber Castell 2/82 N Duplex
Generic slide rule of plastic
370x57x5 mm
Front Scales: T1 T2 L A [ B BI CI S' C ] D S ST P
Back Scales: LL03 LL02 LL01 K DF [ CF K' CIF CI C ] D LL1 LL2 LL3

0929
Faber Castell 2/83 N Novo Duplex
Generic slide rule of plastic
370x57x5 mm
Front Scales: T1 T2 K A DF [ CF B CIF CI C ] D DI S ST P
Back Scales: LL03 LL02 LL01 LL00 W2 [ W2' CI L C W1' ] W1 D LL0 LL1 LL2 LL3

0925
Faber Castell 2/83 Novo Duplex
Generic slide rule of plastic
332x47.4x5 mm
Front Scales: K T1 T2 DF [ CF CIF CI C ] D S ST P
Back Scales: LL03 LL02 LL01 W2 [ W2' L C W1' ] W1 LL1 LL2 LL3

1006
Faber Castell 20/68 Parifix (Conversion Chart - non-logarithmic)
Technical rule of plastic
251x69 mm
Front Scales: cm ft m yd km miles °F °C °R Inch
Back Scales: £cbm sh/d cbft kg lbs Imp.gal USgal Ltr

0933
Faber Castell 3/11 Statics
Generic slide rule of wood/plastic
385x40.5x11 mm
Front Scales: 30cm // A [ B CI 1)2) 3)4) C [ D ] K
Back Scales: [ sin lg sin/tg tg [

3884
Faber Castell 3/11 Statics
Technical slide rule of wood/plastic
384x42x12 mm
Front Scales: 14inch // M [ b CI 1) 2) At C ] D ] K L
Back Scales: [ sin sin/tg tg ]

0936
Faber Castell 3/31 Statik
Log/tech slide rule of wood/plastic
385x42x12 mm
Front Scales: 30cm // M A [ B sb CI 1) 2) fe C ] D h(fe) || K L
Well: 2 3 4 8
Back Scales: [ S 4) 5) ST T ]

0932
Faber Castell 307 Columbus (System Rohrberg)
Generic slide rule of wood/plastic
310x28x65 mm
Front Scales: C [ D M ]

2902
Faber Castell 308
Generic slide rule of wood/celluloid
152x23x7.4 mm
Front Scales: A [ B C ] D
Back Scales: [ S L T ]

1164
Faber Castell 310/52 Projektionsrechenstab
Generic projection of plastic
380x200x12 mm
Front Scales: L K A [ B BI CI C ] D LL1 LL2 LL3
Back Scales: T1 T2 DF [ CF CIF S' C ] D S ST P

3882
Faber Castell 310/87
Projection of 111/87
Generic slide rule of perspex
368x200x15 mm
Front Scales: K A [ B CI C ] D L
Back Scales: K A [ S ST T ] D L

0935
Faber Castell 314
Generic slide rule of wood/celluloid
122x18.2x4.3 mm
Front Scales: A [ B C ] D
Back Scales: 11cm 4inch

0937
Faber Castell 332
Generic slide rule of wood/plastic
152.5x23.5x6.5 mm
Front Scales: A [ B C ] D

2686
Faber Castell 339 Schulrechenstab
Generic slide rule of wood/plastic, 280x27,5x7,5 mm Front Scales: A [ B C ] D
Back Scales: 28cm 11inch

0941
Faber Castell 342 Columbus (System Rohrberg)
Generic slide rule of wood/plastic
385x50x12.8 mm
Front Scales: s £ d £ E.P% V.P.% // Val [ Div. Val.Mult Val.Mult Div. ] Val. || 38cm

0942
Faber Castell 345
Generic slide rule of wood/plastic
280x33x11 mm
Front Scales: 10inch // A [ B C ] D | 27cm
Well: 30-55cm
Back Scales: [ S L T ]

0944
Faber Castell 357
Generic slide rule of all wood
280x33x10 mm
Front Scales: 27cm // A [ B C ] D || 28cm
Well: 30-55cm
Back Scales: [ S. L. T. ]

3457
Faber Castell 360
Generic slide rule of wood/plastic
280x33.5x10.7 mm
Front Scales: 27cm // A [ B C ] D || 28cm
Back Scales: [ S L T ]

0953
Faber Castell 363
Generic slide rule of wood/plastic
280x32.5x9 mm
Front Scales: 27cm // A [ B C ] D || 28cm
Well: #30-55cm#
Back Scales: [ S L T ]

0956
Faber Castell 368 (electro)
Electrical slide rule of wood/plastic
285x36x9 mm
Front Scales: LL3 LL2 // A [ B C ] D \\ 27cm
Well: #Dynamo-Motor n% Volt#
Back Scales: [ S L T ]

3454
Faber Castell 368 (electro)
Electrical slide rule of wood/plastic
285x36x9 mm
Front Scales: 27cm // A [ B C ] D \\ LL3 LL2
Well: #Dynamo-Motor n% Volt#
Back Scales: [ S L T ]

0957
Faber Castell 369
Generic slide rule of wood/celluloid
149x28.6x10 mm
Front Scales: 14cm // A [ B C ] D || 15cm
Back Scales: [ S L T ]

2894
Faber Castell 374 System Pickworth
Generic slide rule of wood/celluloid
280x32x9.5 mm
Front Scales: 27cm // A [ B C ] D || 28cm
Back Scales: [ S L T ] K

0962
Faber Castell 375 Rietz
Generic slide rule of wood/plastic
279x37.6x10 mm
Front Scales: 27cm // K A [ B C ] D L || 28cm
Back Scales: [ S L T ]

0971
Faber Castell 378
Electrical slide rule of wood/plastic
295x38x10 mm
Front Scales: 27cm // LL2 A [ B C ] D LL3 || 10inch #Dynamo-Motor n=% Volt#
Back Scales: [ S L T ]

0983
Faber Castell 387
Generic slide rule of wood/plastic
305x41.5x11 mm
Front Scales: 27cm // K A [ B CI C ] D L || 1:25
Well: #33-60cm#
Back Scales: [ S S&T T ]

0986
Faber Castell 392
Generic slide rule of wood/plastic
300x41x11 mm
Front Scales: 27cm // LL2 A [ B CI C ] D LL3 || K
Back Scales: [ S L T ]

0987
Faber Castell 398
Electrical slide rule of wood/plastic
300x41.2x11 mm
Front Scales: 10inch // LL2 A [ B 1) CI C ] D LL3 || K
Well: #Dynamo-Motor n=% Volt#
Back Scales: [ S L T ]

0991
Faber Castell 4/22 Disponent
Generic slide rule of wood/plastic
574x42.5x13.8 mm
Front Scales: 50cm // units DF [ CF CI C ] D L || sh/d £
Back Scales: [ LL1 LL2 % C ]

0993
Faber Castell 4/54 Darmstadt
Generic slide rule of wood/plastic
574x42x13 mm
Front Scales: 50cm L // K A [ B CI C ] D P || S T
Back Scales: [ LL1 LL2 LL3 ]

1000
Faber Castell 4/98 Elektro
Electrical slide rule of wood/plastic
577x43x14 mm
Front Scales: 50cm // LL2 A [ B CI C ] D LL3 || K
Well: #Dynamo/Motor Volt#
Back Scales: [ S L T ]

1007
Faber Castell 4477 Wichmann
Generic slide rule of wood/plastic
300x39x11 mm
Front Scales: 27cm lg // K A [ B CI C ] D P || sin tg
Well: #34-58cm#
Back Scales: [ LL1 LL2 LL3 ]

1009
Faber Castell 51/22
Generic slide rule of wood/plastic
300x30x9 mm
Front Scales: units KZ [ T Val. E ] V L
Back Scales: [ LL1 LL2 % C ]

1010
Faber Castell 51/39
Generic slide rule of wood/plastic
301x30x9.5 mm
Front Scales: A [ B C ] D
Back Scales: 30cm [ ] 11.7inch

1182
Faber Castell 51/39/339 School Rekenlineaal
Generic slide rule of wood/plastic
300x30x9.4 mm
Front Scales: A [ B C ] D
Back Scales: 30cm 11.7inch


1012
Faber Castell 51/91
Generic slide rule of wood/plastic
300x30x10 mm
Front Scales: A [ B C ] D
Back Scales: [ sin lg tg ]

5754
Faber Castell 51/94 System Rietz
Generic slide rule of wood/celluloid
300x30x9 mm
Front Scales: K A [ B C ] D L
Back Scales: [ sin sin/tg tg ]

1184
Faber Castell 51/94/317 Schul Rechenstab
Generic slide rule of wood/plastic
300x30x9 mm
Front Scales: K A [ B C ] D L
Back Scales: 30cm [ sin sin/tg tg ] 11inch

2868
Faber Castell 52/22 Schul Disponent
Generic slide rule of all wood
300x30x10 mm
Front Scales: units KZ [ T val E ] V L
Back Scales: [ LL1 LL2 % C ]

1186
Faber Castell 52/39/355
Generic slide rule of all wood
300x30x9 mm
Front Scales: A [ B C ] D

1015
Faber Castell 52/80 Mentor
Generic slide rule of plastic
324x41.5x4 mm
Front Scales: A % DF [ CF CIF CI C ] D K
Back Scales: 25cm [ ] 10inch

1018
Faber Castell 52/81 Novo Mentor
Generic slide rule of plastic
325x41.84 mm
Front Scales: A DF [ CF CIF CI C ] D K
Back Scales: T1 T2 [ S' CI C ] D S ST

1019
Faber Castell 52/82 D-stab
Generic slide rule of plastic
325x42x4 mm (1971)
Front Scales: L K A [ B BI CI C ] D LL1 LL2 LL3
Back Scales: T1 T2 DF [ CF CIF S' C ] D S ST P

3451
Faber Castell 55/91
Generic slide rule of all wood
300x30x9 mm
Front Scales: A [ B C ] D
Back Scales: [ sin lg tg ]

1030
Faber Castell 57/22 Disponent
Generic slide rule of plastic
298x40x5.2 mm
Front Scales: 27cm // conversionfactors % DF [ CF CI C ] D L
Back Scales: [ LL1 LL2 % C ]

3895
Faber Castell 57/22 W Tuberios de Fibrocemento
Concrete slide rule of plastic

1038
Faber Castell 57/69
Technical slide rule of plastic
298x40x5.5 mm
Front Scales: 27cm // AG [ I oam2 II oam2 ] OS

1043
Faber Castell 57/86 Columbus
Generic slide rule of plastic
288x32x4,5 mm (1962)
Front Scales: 27cm // A [ B C ] D

1048
Faber Castell 57/87 Schul Rietz
Generic slide rule of plastic
300x396x5.5 mm
Front Scales: 27cm // K A [ B CI C ] D L
Back Scales: [ S ST T ]

1065
Faber Castell 57/88 Rietz-N
Generic slide rule of plastic
300x49x5.5 mm
Front Scales: 27cm // K A [ B L CI C ] D S ST T1 T2

1070
Faber Castell 57/89 Log Log
Generic slide rule of plastic
300x49x5.5 mm
Front Scales: 27cm // K A [ B L CI C ] D S ST T1 T2
Back Scales: [ LL2 S' LL3 ]

1076
Faber Castell 57/92
Generic slide rule of plastic
298x39.8x5.5 mm
Front Scales: 10inch // LL2 A [ B CI C ] D LL3
Back Scales: [ S L T ]

1187
Faber Castell 61/60/369
Generic slide rule of wood/plastic
156x31.5x9.5 mm
Front Scales: 14cm // A [ B C ] D || 1:25 Back Scales: [ S L T ]

1188
Faber Castell 61/87/397 Rietz
Generic slide rule of wood/plastic
155x31x9 mm
Front Scales: 14cm // K A [ B CI C ] D L || 1:25
Back Scales: [ sin sin/tg tg ]

1080
Faber Castell 62/82 N Duplex
Generic slide rule of plastic
200x47x3.5 mm
Front Scales: T1 T2 L A [ B BI CI S' C ] D S ST P
Back Scales: LL03 LLO2 LL01 K DF [ CF K' CIF CI C ] D LL1 LL2 LL3

3439
Faber Castell 62/83
Generic slide rule of plastic
186x42x4 mm
Front Scales: K T1 T2 DF [ CF CIF CI C ] D ST S P
Back Scales: LL03 LL02 LL01 W2 [ W2' L C W1' ] W1 LL1 LL2 LL3

1082
Faber Castell 62/83 N Novo-Duplex
Generic slide rule of plastic
200x46.4x3.4 mm
Front Scales: T1 T2 K A DF [ CF B CIF CI C ] D DI S ST P
Back Scales: LL03 LL02 LL01 LL00 W2 [ W2' CI L C W1' ] W1 D LL0 LL1 LL2 LL3

1084
Faber Castell 63/22
Generic slide rule of wood/plastic
155x30x4.5 mm
Front Scales: 14cm // KZ [ T Val E ] V

1085
Faber Castell 63/22 R Kleindisponent Addiator
Generic rule/addiator of wood/plastic
155x37x8 mm
Front Scales: 14cm // KZ [ T Val E ] V \\ s/£ d/£ Back: Addiator +/-

1086
Faber Castell 63/39
Generic slide rule of wood/plastic
155x31.4x4.8 mm
Front Scales: 14cm // A [ B C ] D

1087
Faber Castell 63/83
Generic slide rule of plastic
172x38x3.5 mm
Front Scales: K T1 T2 DF [ CF CIF CI C ] D S ST P
Back Scales: LL03 LL02 LL01 W2 [ W2' L C W1' ] W1 LL1 LL2 LL3

3255
Faber Castell 63/87 (Phillip Holzmann AG)
Generic slide rule of plastic
Front Scales: 14cm // K A [ B CI C ] D L
Back Scales: [ sin sin/tg tg ]

1089
Faber Castell 63/91 (Maatschappij Wegenbouw N.V. Bitumenweg N.V, Utrecht)
Generic slide rule of plastic
150x30.5x4.5 mm
Front Scales: 14cm // A [ B C ] D

1520
Faber Castell 64/22 (Made in Bavaria)
Generic slide rule of wood/celluloid
154x31x6 mm
Front Scales: 5inch // DF [ CF CI C ] D

3449
Faber Castell 64/91
Generic slide rule of wood/celluloid
155x32x6.5 mm
Front Scales: 14cm // A [ B C ] D
Back Scales: [ sin lg tg ]

1094
Faber Castell 67/22 Kleindisponent
Generic slide rule of plastic
157x33x4.5 mm
Front Scales: 14cm // % DF [ CF CI C ] D
Back Scales: [ sh/d £ ]

1097
Faber Castell 67/22 Rb Disponent Addiator
Generic rule/addiator of plastic
158x42x7 mm
Front Scales: 14cm // % DF [ CF CI C ] D sh/d £
Back: Addiator +/-

3893
Faber Castell 67/34 Medizinischer Rechenstab Hemaglobin
Medical slide rule of plastic

1098
Faber Castell 67/39
Generic slide rule of plastic
157x32.8x4.4 mm
Front Scales: 14cm // A [ B C ] D

1100
Faber Castell 67/54 b Darmstadt
Generic slide rule of plastic
158x42x4.5 mm
Front Scales: 14cm // L K A [ B CI C ] D P S T
Back Scales: [ LL1 LL2 LL3 ]

3903
Faber Castell 67/54 b SZ
Generic slide rule of plastic
158x42x4 mm
Front Scales: 14cm // j cosj A [ B CI C ] D sinj tgj L

1099
Faber Castell 67/54 Darmstadt
Generic slide rule of plastic
153x40x4 mm
Front Scales: 14cm lg // K A [ B CI C ] D P \\ sin tg
Back Scales: [ LL1 LL2 LL3 ]

1105
Faber Castell 67/54 R Darmstadt
Generic slide rule of plastic
153x40x9 mm
Front Scales: 14cm L // K A [ B CI C ] D P \\ S T
Back Scales: [ LL1 LL2 LL3 ]

2817
Faber Castell 67/54 Rb Darmstadt Addiator
Generic rule/addiator of plastic/metal
158x41x7 mm
Front Scales: 14cm // L K A [ B CI C ] D P S T
Back Scales: [ LL1 LL2 LL3 ]

3131
Faber Castell 67/54 Rb Darmstadt Addiator
Generic rule/addiator of plastic/metal
157x42x7 mm
Front Scales: 5inch // L K A [ B CI C ] D P S T
Back Slide: [ LL1 LL2 LL3 ]
Back: Addiator +/-

2793
Faber Castell 67/56 b Schweisstechnik
Log/tech slide rule of plastic
157x42x4.2 mm
Front Scales: 14cm // L K A [ B CI C ] D P S T
Back Scales: [ H CI C ]

1106
Faber Castell 67/87 Rb Rietz Addiator
Generic rule/addiator of plastic
158x43x8 mm
Front Scales: 14cm // L K A [ B CI C ] D S ST T

1108
Faber Castell 67/87 Rietz
Generic slide rule of plastic
157x32.8x4.5 mm
Front Scales: 14cm // K A [ B CI C ] D L
Back Scales: [ S ST T ]

1117
Faber Castell 67/91
Generic slide rule of plastic
157x33x4.5 mm
Front Scales: 14cm // A [ B C ] D
Back Scales: [ S L T ]

1120
Faber Castell 67/98 b Elektro
Electrical slide rule of plastic
158x42x4.6 mm
Front Scales: 14cm // LL2 A [ B CI C ] D LL3
Well: Dynamo-Motor h=% Volt
Back Scales: [ S L T ]

1001
Faber Castell 8/10
Generic disc of plastic
125x7 mm
Front Scales: K A L D ( C CI B T1 T2 S ST )

3565
Faber Castell 8/30
Financial disc of plastic
95x1.5 mm
Front Scales: RABATT% AUFSCHLAG% D ( C CI )

3458
Faber Castell 9205
Generic slide rule of wood/celluloid
279x37x11 mm
Front Scales: 26cm // K A [ B C ] D L || 10inch
Back Scales: [ S ST T ]

5741
Faber Castell Calculating Rule
Generic slide rule of all wood
Front Scales: 10 inch // A [ B C ] D L || 27 cm
Well: 51cm
Back Scales: [ S L T ]

5040
Faber Castell ( Kodak )
Photography slide rule of plastic
Front Scales: a(m) [ xa/f(mm) x(mm) ] f(mm) f/r k
Back: Translation of terms

0844
Faber Castell (Nijgh & Van Ditmar)
Generic slide rule of plastic
297x39.8x5.4 mm
Front Scales: 27cm // A DF [ CF L CI C ] D K
Back Scales: [ S ST T ]

0849
Faber Castell TR 2 with pocket calculator
Log/comp slide rule of plastic
171x58x18 mm (1978)
Front Scales: LL03 LL02 LL01 K A [ B BI CI C ] D L LL1 LL2 LL3
Back Scales: [ T1 ST S P C ] Calculatore: LED display - basic math

2874
Faber cme world war II military rule
Military slide rule of wood/plastic
249x59x15 mm
Front Scales: 1) 2) / 3) [ 4) 5) ] 6) 7) || 24cm
Back Scales: [ 8) 9) ]

2809
Faber Made in Bavaria (no scale labels)
Generic slide rule of wood/celluloid
280x34x9 mm
Front Scales: / A [ B C ] D \

2810
Faber Made in Bavaria
Generic slide rule of wood/celluloid, 260x33x9 mm
Front Scales: 10inch // A [ B C ] D ] 26cm
Well: #27-51cm#
Back Scales: 10 INCHES [ S. L. T. ] 25 METER

3587
Faber Verlag Chemie
Chemistry slide rule of plastic
187x41x3.3 mm
Front Scales: K T1 T2 DF [ CF L Ci C ] D LL3 LL03 LL02
Back Scales: C N F H [ B 1) CI C ] D B P Cl

1189
FAé-LuM-HSB 300 Hono-Rietz
Generic slide rule of plastic
291x48.7x4.3 mm
Front Scales: L K A [ B CI C ] D S ST T

2690
Farmar Entire Wine & Spirit
Alcohol slide rule of wood/plastic
531x67x7 mm
Front Scales: AA A [ B C ] D E F
Back Scales: 1) 2) G [ H I ] J K KK

1191
Farrow & Jackson gauging
Generic slide rule of all wood
318x55x6.5 mm (After 1824)
Front Scales: 12inch 1) 2) || A [ B C ] D SS [ E ] SL
Back Scales: A [ A ] A C [ OP C ] 1/ss

1192
Fearns Shaft Size and Horsepower Calculator
Technical disc of plastic
104x4.2 mm
Front Scales: 1 ( 2 3 ) 4 5

1197
Felsenthal Computer Altitude Correction AN 5837 - 1
Aviation disc of plastic
203x3 mm (1948)
Front Scales: 1 2 ( 3 4)

1194
Felsenthal Mark 8 Aircraft Navigational Computer
Aviation disc of plastic
108x1.5 mm
Front Scales: 1 ( 2 3 4 5 6 )

5439
Felsenthal ML 420 A / AMT 4
Meteorology disc of plastic
2834 mm

1198
Felsenthal Part no. FAA 12
Aviation table of plastic
275x97x1 mm

1211
Felsenthal Part no. FAA 123
Aviation disc of plastic
204x5 mm
(1961, 1963)

1199
Felsenthal Part no. FAA 14
Aviation disc of plastic
204x3 mm
Front Scales: 1 2 3 ( 4 5 ) 6 7

1212
Felsenthal Part no. FAA 156
Aviation disc of plastic
156 mm (1964)

1214
Felsenthal Part no. FAA 212 PT Pilot's Computer
Aviation disc of plastic
99x3 mm (1970-1974)
Front Scales: Many scales
Back Scales: Many scales

1201
Felsenthal Part no. FAA 35 Course & Distance Computer A-5
Aviation disc of plastic
228x3 mm
Front Scales: 1 ( 2 3 4 )
Back Scales: 5 6 ( 7)

1202
Felsenthal Part no. FAA 37
Aviation disc of plastic
110x3 mm
Front Scales: 1 ( 2 3 ) + window
Back Scales: 4 ( 5 ) + window

1204
Felsenthal Part no. FAA 46C Type MB 4
Aviation disc of metal
283x123x10 mm

1205
Felsenthal Part no. FAA 58 Plotter Scale Type B 2 (non-logarithmic)
Aviation slide rule of plastic
371x103x4 mm (1980)
Front Scales: 1 2 3 4 5 6

1206
Felsenthal Part no. FAA 78A - 1
Aviation disc of metal
127x25 mm (1957)
Front Scales: 1 2 ( 3 ) 4 ( 5)
Back Scales: 6 7 8 9 10 ( 11 ) 12

1196
Felsenthal Part no. FAA 8
Aviation disc of plastic
124x239x12 mm
Front Scales: 1 ( 2 3 ) + 2 windows
Back Scales: 4 ( 5)

1207
Felsenthal Part no. FAA 84
Aviation disc of plastic
110x35 mm
Front Scales: 1 ( 2 ) 3 ( 4 5 6 ) + 3 windows
Back Scales: 7 ( 8 ) + 3 windows

1208
Felsenthal Part no. FAA 93A
Aviation disc of metal
190x80x9 mm

1203
Felsenthal Part no. FDF-39 Radio Navigation Plotter (non-logarithmic)
Aviation slide rule of plastic
191x77x1 mm (1969)
Front Scales: 1 2 3 4
Back Scales: 5 6 7 8 9

1195
Felsenthal Part no. FDI 8 Mach Computer
Aviation disc of plastic
152x2 mm
Front Scales: 1 ( 2 ) + window

1200
Felsenthal Part no. FDW 31 Mark VIII-Computer
Aviation disc of plastic
102x1.2 mm (1968)

5431
Fescol Hardness
Technical disc of cardboard
97x2 mm
Front Scales: Diamond Pyramid Brinell Firth Rockwell Scleroscope Tensile Strength

1216
Festus (Festus Mfg, Festus, MO prior to beoming Acu-Rule)
Generic slide rule of wood/paint
267x31x9 mm
Front Scales: A [ B CI C ] D K

2052
Feuerleitgerät FLG - 9
Military instrument of metal
580x350x80 mm

5042
Filotecnica No. 05 R
Generic slide rule of wood/plastic Front Scales: 55cm // K A [ B CI C ] D L Well: 58 - ?? cm Back Scales: [ S S&T T ]

5323
Filtra Filtergewebe
Technical slide chart of cardboard
210x208x0.8 mm
Front Scales: See Picture
Back Scales: See Picture

1219
Flying Fish 1200
Generic slide rule of plastic
200x45x4 mm
Front Scales: sh0 sh1 K A [ B srt-1 tg0 tg1 tg2 C ] D lg-1 th0 ch1
Back Scales: lni-1 lni0 lni1 DF [ CF CIF sin0 H01 CI C ] D ln1 ln0 ln-1

1220
Fogra Ätztiefenschlüssel
Technical disc of plastic
140x1.5 mm
Front Scales: 1 ( 2 3 4 5 6 7 )

1221
Fokker F 28
Technical disc of plastic
130x1 mm (1968)

5300
Fontenaille Table de Conversion Density Gas and Liquids
Log/tech disc of cardboard
278x214x1 mm (1992)
Front Scales: See Picture
Back Scales: See Picture

3682
Fowler Long Scale Calculator
Generic disc of metal
68.5x11.5 mm
Front Scales: L 3 revolution B scale
Back Scales: C 6 revolution B scale

3060
Fowler Universal
Generic watch type of metal
86x10 mm
Front Scales: Conversion Yards to Metres C CI L 100-10 (in 3 circles) sin(6°-70°) sin(0°-5°) tan

1222
Fowlers Calculator
Generic watch type of metal/glass
68 mm Front Scales: D C B A
Back Scales: L C A S

1223
Fowler's Jubilee Magnum Extra Long Scale
Generic disc of metal/glass
119.5x11 mm Front Scales: 1 C CI L 2 3 4 5 6 7 8 9 10 11

1227
Foxboro Flow & Valve (Steam, Gas and Liquid)
Log/tech slide rule of plastic
327x46x5 mm (1967)
Front Scales: 1 2 3 [ 4 5 6 7 8 9 10 11 12 13 14 ] 15
Back Scales: 16 [ 17 18 19 20 21 22 23 ] 24 25 26 27

1229
Foxboro The Valve and Meter
Log/tech slide chart of plastic
153x50x3 mm (1963)

1228
Foxboro Valve calculations
Log/tech slide rule of plastic
152x50 mm
Front Scales: A [ B 1 C ] E # 2 #
Back Scales: [ B1 3 4 5 6 7 8 9 ]

1230
Frico Caloriewijzer
Medical disc of cardboard
120x0.3 mm

1235
Fuji 102 B
Generic slide rule of plastic
321x45x4 mm
Front Scales: K S A [ B CI C ] D T L

1236
Fuji 104 B
Generic slide rule of plastic
320x45x4 mm
Front Scales: T1 T2 K A [ B CI C ] D S ST L

1237
Fuji 106
Generic slide rule of plastic
320x45x3.8 mm
Front Scales: T ST DF [ CF CIF CI C ] D A S

1238
Fuji 112 WN Wolters Noordhoff
Generic slide rule of plastic
319x45x4 mm
Front Scales: L DF [ CF CIF CI C ] D A K
Back Scales: 25cm [ S ST T1 T2 ]

1250
Fuji 1250 S Duplex Log/Log
Generic slide rule of plastic, 335.5x49x5 mm Front Scales: LL-1 LL-2 LL-3 A [ B L K C ] D LL3 LL2 LL1
Back Scales: T1 T2 DF [ CF CIF CI C ] D P S ST

1251
Fuji 129 01 Student Log
Generic slide rule of plastic
325x45x4 mm
Front Scales: L K A [ B CI C ] D S ST T
Back Scales: 25cm [ S LL1 LL2 LL3 ] 10inch

1240
Fuji 129 Student Log
Generic slide rule of plastic
314x43x4 mm
Front Scales: L K A [ B CI C ] D S ST T
Back Scales: 25cm [ S LL2 LL3 ] 10 inch

1243
Fuji 251 Rietz
Generic slide rule of plastic
290x40x4 mm
Front Scales: 25cm // K A [ B CI C ] D L
Back Scales: [ S ST T ]

3684
Fuji 42
Generic slide rule of plastic
150.5x27x4 mm
Front Scales: DF [ CF CI C ] D
Back Scales: [ S L T ]

3683
Fuji 51
Generic slide rule of plastic
150.5x27x4 mm
Front Scales: A [ B CI C ] D K
Back Scales: [ S L T ]

1245
Fuji 534 S
Generic slide rule of plastic
150x35x4 mm
Front Scales: 13cm // K A [ B CI C ] D L \\ 5inch Back Scales: [ S ST T ]

1247
Fuji 535 S
Generic slide rule of plastic
14.9x34.5x4 mm
Front Scales: 13cm // A [ B CI C ] D K \\ 5inch Back Scales: [ S L T ]

3438
Fuji 536 C
Generic slide rule of plastic
150x34x4 mm
Front Scales: 13cm // S T A [ B CI C ] D K P
Back Scales: [ L LL1 LL2 LL3 ]

1248
Fuji 553 P Duplex Log Log
Generic slide rule of plastic
175x38x4 mm
Front Scales: LL-1 LL-2 LL-3 A [ B L K C ] D LL3 LL2 LL1
Back Scales: T1 T2 DF [ CF CIF CI C ] D P S ST

1232
Fuji 88
Generic slide rule of plastic
225x30x4 mm
Front Scales: K DF [ CF CI C ] D A
Back Scales: [ S L T ]

3662
Fuji F 100
Generic slide rule of plastic
313.5x43x6.5 mm
Front Scales: DF [ CF CIF CI C ] D A

1233
Fuji FJ 102 WN Wolters Noordhoff Branded
Generic slide rule of plastic
313x43x5 mm
Front Scales: L DF [ CF CIF CI C ] D A K
Back Scales: 25cm [ S ST T1 T2 ]

3911
Fullerton ACU 400
Generic slide rule of plastic
315x40x3 mm
Front Scales: S K A [ B CI C ] D L T

1258
Gamma Budapest 2503
Generic slide rule of wood/plastic
295x38.8x11.4 mm
Front Scales: 27cm L // K A [ B CI C ] D P || sin tg
Back Scales: [ LL1 LL2 LL3 ]

5382
Gasunie Conversion rule for combustion component units
Conversion slide chart of cardboard
162x70x1 mm
Front Scales: See Picture
Back Scales: See Picture

1261
Geluidsbelastingschijf
By Verkeersakademie, technical disc of plastic
135 mm
Front Scales: 1 2 ( 3 4 5 )

1262
Geluidsoverlast
Technical slide chart of plastic
210x77x1 mm
Front Scales: 1 - 10

5311
Gerling Benzin Rechner
Technical disc of cardboard
103x145x0.7 mm
Front Scales: See Picture
Back Scales: See Picture

5345
Geschwindigkeitsmesser für Schleif- und Polierscheiben (Norton,, USA - Form 1367)
log/tech slide chart of plastic
146x91x0.7 mm
Front Scales: See Picture
Back Scales: See Picture

3950
Geveke Werktuigbouw Perslucht - Energieverlies - Berekeningsschijf
By Slide Charts Britain Ltd, log/tech slide chart of cardboard
212x80x1 mm (1996)

1263
Gewichts- und Massberechnung von Bandstahlringen
Technical slide chart of plastic
210x68x2.5 mm
Front Scales: 20cm 7 scales scale 1:25 from 0-5
Back Scales: 15 stuks scales

1270
Gilson Midget
Generic disc of plastic
107x0.7 mm (1931, 1936)
Front Scales: x 1/x lg.x x3
Back Scales: C CI L A binary LL 1/64 drill V USS sin tg sin tg sin tg 1/64 dec.

3258
Gilson The Binary Slide Rule Type I
Disc of aluminium
203x mm (1931 1940)
Front Scales: C CI A K L 4 revolution Log Log, Binary, Fraction, drill size and mm conversion
Back Scales: Degrees, Sines, Tangents, Degrees, Sines, Tans., Deg'es, Sines, Tans, Fractions, Decimal equivalents

0111
Gilson The Binary Slide Rule Type II
Slide rule of aluminium
209 mm (1931 1940)
Front Scales: C CI A K L 4 revolution Log Log, Binary, Fraction, drill size and mm conversion
Back Scales: Degrees, Sines, Tangents, Degrees, Sines, Tans., Deg'es, Sines, Tans, Fractions, Decimal equivalents

1271
Goble Aircraft Specialities Model D
Aviation disc of plastic
105x2 mm (1946)
Front Scales: 1 ( 2 3 4 5 ) + 2 windows

1272
Goldwell Conbelcolor Farbfestiger (non-logarithmic)
Other disc of plastic
89x113x1.5 mm

1274
Grant Casing (non-logarithmic)
Technical slide chart of plastic
235x98x1.5 mm

1275
Grant Tubing (non-logarithmic)
Technical slide chart of plastic
235x98x1.5 mm

1276
Graphic Anemostat Air Duct Calculator
Log/tech slide chart of plastic
215x84x2 mm
Front Scales: 8 scales
Back Scales: 11 scales

1343
Graphic Calculator Cameron Flange
Technical slide chart of cardboard
255x102x2 mm

1345
Graphic Calculator Co Reed Hydraulic Calculator
Log/tech slide chart of plastic
252x105x2.5 mm

1286
Graphoplex
Log/tech slide rule of plastic
291x40x6.2 mm
Front Scales: 27cm // 1 [ 2 3 ] 4 5

1287
Graphoplex
Generic slide rule of plastic
292x43.4x4 mm
Front Scales: 25cm L B3 B2 [ b2 a b ] B S S&T T

1288
Graphoplex
Generic slide rule of plastic
294x38.7x8.2 mm
Front Scales: 27cm // K A [ B CI C ] D L
Back Scales: [ S S&T T ]

2728
Graphoplex
Log/tech slide rule of plastic
295x39.5x5.5 mm
Front Scales: 27cm // w R [ X Q ] H

1289
Graphoplex (615) Caltex
Generic slide rule of plastic
185x32x5 mm
Front Scales: 17cm // B3 B2 [ b2 a b ] B L #°F °C#
Well: °F to °C conversion
Back scale: [ °API D ]

1332
Graphoplex 1600
Generic slide rule of plastic
298x45.6x3.6 mm
Front Scales: 27cm // L T>45° A [ B K CI C ] D S ST T<45°

3680
Graphoplex 1612
Generic slide rule of plastic
151.5x33x4.5 mm
Front Scales: 13cm // B3 B2 [ b2 a b ] B L
Back Scales: [ S S&T T ]

3677
Graphoplex 1612 Rietz KOH-I-NOOR
Generic slide rule of plastic
150x33x4.5 mm
Front Scales: 13cm // B3 B2 [ b2 a b ] B L
Back Scales: [ S S&T T ]

1340
Graphoplex 1614 Log Log
Generic slide rule of plastic
297x49x4 mm
Front Scales: 27cm // LL2 LL3 L A [ B K CI C ] D S ST T<45°

1341
Graphoplex 1694 Techni - math
Generic slide rule of plastic
296x49x4 mm
Front Scales: 27cm // P K A DF [ CF L CI C ] D S SRT T

1294
Graphoplex 610 Rietz
Generic slide rule of plastic
295x30x4 mm
Front Scales: K A [ B CI C ] D L

1295
Graphoplex 612
Generic slide rule of plastic
150x32x4.5 mm
Front Scales: 13cm // B3 B2 [ b2 a b ] B L
Back Scales: [ S S&T T ]

1301
Graphoplex 615
Generic slide rule of plastic
185x32x4 mm
Front Scales: 17cm // K A [ B CI C ] D L
Back Scales: [ S ST T ]

1305
Graphoplex 620 d
Generic slide rule of plastic
292x40x6.5 mm
Front Scales: 27cm // B3 B2 [ b2 a b ] B L
Back Scales: [ S S&T T ]

1303
Graphoplex 620 Rietz
Generic slide rule of plastic
290x40x6 mm
Front Scales: 27cm // B3 B2 [ b2 a b ] B L
Back Scales: [ S S&T T ]

1309
Graphoplex 630 Géomètre Topographe 400g
Generic slide rule of plastic
294x45x5.5 mm
Front Scales: 27cm // L B3 B [ sinxcos cos2 S&T b ] B B2 1/B2
Back Scales: [ sin sin&tg tg b2 ]

1311
Graphoplex 640 Electric Log Log
Generic slide rule of plastic
291x46x6 mm
Front Scales: 27cm // L B3 B2 [ b2 a b ] B LL3 LL2 LL1
Back Scales: [ cos sin tg b ]

1320
Graphoplex 647
Generic slide rule of plastic
293x45.5x5.5 mm
Front Scales: 27cm // K P A [ B AI CI C ] D S ST T<45°
Back Scales: [ L LL1 LL2 LL3 ]

1321
Graphoplex 650 Electro
Electrical slide rule of plastic
153x44.8x4.8 mm
Front Scales: 13cm // L B3 cosø B2 [ b2 a b ] B cosø DYNAMO MOTEUR VOLT
Back Scales: [ S&T S T b ]

1323
Graphoplex 690 a Neperlog
Generic slide rule of plastic
336x48.5x5.5 mm
Front Scales: LL00 L T>45° A [ B T<45° SRT S C ] D P DI LL0
Back Scales: LL01 LL02 LL03 DF [ CF CIF K CI C ] D LL3 LL2 LL1

1324
Graphoplex 691 a Neperlog Hyperbolic
Generic slide rule of plastic
338x48.7x4.2 mm
Front Scales: L P Ch A [ B T<45° ST S C ] D Th Sh2 Sh1
Back Scales: LL01 LL02 LL03 DF [ CF CIF K CI C ] D LL3 LL2 LL1

1326
Graphoplex 692 b
Generic slide rule of plastic
185x44x3 mm
Front Scales: LL00 L T>45° A [ B T<45° SRT S C ] D P DI LL0
Back Scales: LL01 LL02 LL03 DF [ CF CIF K CI C ] D LL3 LL2 LL1

5739
Graphoplex 694
Generic slide rule of plastic
330x39x4.4 mm
Front Scales: P T>45° A = B T<45° ST S C = D DI K
Back Scales: L LL3 DF = CF CIF CI C = D LL2 LL1

1327
Graphoplex 694 a Tecnilog
Generic slide rule of plastic
330x39x4.4 mm
Front Scales: P T>45° A [ B T<45° SRT S C ] D DI K
Back Scales: L LL3 DF [ CF CIF CI C ] D LL2 LL1

1329
Graphoplex 697
Electrical slide rule of plastic
337x48.3x4.2 mm
Front Scales: L 1 Dyn./M Volts A [ B Cap./Ind. CI C ] D f l DI
Back Scales: ST T S DF [ CF CIF K CI C ] D LL3 LL2 LL1

1331
Graphoplex 699 Décilog
Generic slide rule of plastic
332x39x4.2 mm
Front Scales: LL01 L A [ B T SRT S C ] D DI LL1
Back Scales: LL02 LL03 DF [ CF CIF K CI C ] D LL3 LL2

1281
Graphoplex Calculateur Roplex
Generic disc of plastic, 128x128x6 mm
Front Scales: ( n n ) ( n2 n2 ( 1/n)
Back Scales: n3 S L O T S&T

2762
Graphoplex Conversion (non-logarithmic)
Conversion no slide of plastic
280x40x9.5 mm
Front Scales: 25cm // B (US)L (I)LG AI A \\ 10inch

3287
Graphoplex Oilcompany rule
Oil industry slide rule of plastic
152x31.5x5 mm
Front Scales: 5inch // Gross loss% CO2% [ °F °C C ] D Net loss%
Back Scales: [ Excess air% CO2% Oxy.% ]

1308
Graphoplex S 621 Rietz
Generic slide rule of plastic
295x46x5 mm
Front Scales: 27cm // P SRT A [ B T<45° S CI C ] D K L

1316
Graphoplex S 641 Log Log
Generic slide rule of plastic
295x56.4x5.5 mm
Front Scales: 27cm // L K P SRT A [ B T<45° S CI C ] D LL3 LL2 LL1

3075
Graphoplex Statos Béton Armé
Concrete slide rule of plastic
290x46 mm
Front Scales: 27cm // L B3 B2 [ b2 a b ] B 1 2 3 4 5 6
Back Scales: [ cos sin tg b ]

1284
Graphoplex Statos Stahlbeton Von Roll
Concrete slide rule of plastic
153x44x4.8 mm
Front Scales: 13cm // L cos B3 B2 [ b2 a b ] B 1 2 3
Back Scales: [ S&T S T b ]

3530
Graphoplex Statos Stahlbeton Von Roll - S
Concrete slide rule of plastic
153x44x4.8 mm
Front Scales: 13cm // L cos B3 B2 [ b2 a b ] B 1 2 3
Back Scales: [ S&T S T b ]

2790
Graphoplex Thermocoax
Technical slide rule of plastic
293x46x6.5 mm
Front Scales: 27cm // AK FK AB [ mv mv ] AB pre prg rdrn
Back Scales: [ °C °F ] 10inch

1347
Gravet Lenoir
Generic slide rule of all wood
260x24.2x7.9 mm
Front Scales: A [ B B ] D || 26cm
Well: #26-52cm#
Back Scales: [ 1 2 3 ]

3852
Gravet Lenoir
Generic slide rule of all wood
Front Scales: A [ B B ] D || 26cm
Well: #26-52cm#
Back Scales: [ 1 2 3 ]

1348
Green B - 29 Flight Engineer's Computer
Aviation slide rule of metal/paper
395x100x5 mm (1945)
Front Scales: nomogrammen
Back Scales: nomogrammen

3506
Green Force and Bomb Load Computer
Military rule no cursor no slide of metal/celluloid
395x100x2 mm

1349
Greenfield Tap Drill Chart (non-logarithmic)
Technical table of cardboard/plastic
139x86x0.4 mm

5342
Greschner Comfort Sinusverteiler
Technical slide chart of plastic
225x98x1.3 mm
Front Scales: See Picture
Back Scales: See Picture

5266
Greschner Geluiddempers
Technical slide chart of plastic
198x94x1.5 mm (1989)
Front Scales: See Picture
Back Scales: See Picture


1350
Griffon Fuel Consumption Calculator for Griffon 57 Engine
Technical disc of plastic
140x140x3 mm
Front Scales: 1 2 ( 3 4 )

1351
Grizzle Gas Pipe Line
Technical slide rule of wood
305x28 mm (1945)
Front Scales: B A [ A1 C Q ] P and Sp.Gr . And E and D F and H
Back Scales: [ BI CI R G DL [

5061
Grizzle, B.F., Water Line Capacity Slide rule
Log/tech slide rule Scale arrangement 1944
Front Scale: Pipe ID [Length of Line, Cubic feet, GPH, GPM ] Head Loss, Pressure Loss

3575
Guedon Camden N.J. (Made in France)
Generic slide rule of celluloid
146.5x28x3 mm
Front Scales: A [ B C ] D
Back Scales: Conversion table

5782
Gunter (only front side)
Gunter rule of all wood

1353
Gunter's scale
Generic Gunter rule of all wood
608x44x4 mm
Front Scales: Many scales
Back Scales: Many scales

5257
Günther & Co. Drills (non-logarithmic)
Technical slide chart of plastic/cardboard
170x95x1.5 mm
Front Scales: See Picture
Back Scales: See Picture

2777
Gypsum Gypsum Cement & Plaster Calculator
Log/tech slide chart of cardboard
231x102x2.5 mm
Front Scales: 8 scales
Back Scales: 2 scales

Index A B C DE FG HI JK L M NO PQ R S T UVWXYZ
Copyright © 2003-
International Slide Rule Museum
