Keuffel and Esser, Specialty Scales

REF K&E M4 Graphical Firing Table Slide Rule - 1943

K&E 4095-5 Mercant's Slide Rule sn55071 (1922)

K&E Percent Of Accuracy Estimate Slide Rule REF	K&E Percent Of Accuracy Estimate Slide Rule (Lot 172) Made in U.S.A. by Keuffel & Esser Co., New York - cWWII Front Scale: Index Mark[ 50-100-50, Estimated Range, 500-1500 ] True Range 500-1500 Back Scale: Blank Soper Archive - Match 4638
K&E Timeslide by Albert J. Smith 1955 ISRM 24.07.04.12.X	K&E Timeslide by Albert J. Smith 1955 Made in U.S.A. by Keuffel & Esser Co., New York designed by Albert J. Smith. Front Scale: 12 Months/days [ 12 Months/days ] Days 365-0, Percent 100% -5% Back Scale: Blank Tom Dilatush Collection
K&E 4094 Merchant's Slide Rule S043	K&E 4094 Merchant's Slide Rule S/N 730837 Made in U.S.A. by Keuffel & Esser Co., New York Front Scale: Inch // DF [ CF, CI, C ] D || Cm Back Scale: Blank
K&E 4095-1 Merchants Rule (1922) ISRM 21,11,03.01	K&E 4095-1 Merchants Rule sn298391 Made in U.S.A. - Pat. 1,930,852, Pat. 8.17.16 Note: All-Glass Cusor Front Scale: DF [ CF, C ] D Back Scale: [ Index, CI ] D Gift Of Karen Eccks of La Mesa, California. 1915 manual, 2.35MB PDF
K&E 4095-3 Merchants Rule with Time Scale (1922) ISRM 20.06.05.01	K&E 4095-3 Merchants Rule with Time Scalesn none Made in U.S.A. - Pat. June 5, '00, Dec. 22. '08. Cursor Pat.8,17,15 Note: All-Glass Cusor. Note: There is a #8 on the face of the slide on the left end. Lot#? Note: This specimen has a Time scale in 15 minute divisions. Front Scale: DF [ CF, C ] D Back Scale: Time Hour 16hrs, Minute 7:30 to 23:30 [ Index, CI ] D Gift Of Matthew Grandy of New Sweden, Maine
K&E 4095-3 Merchants Rule (1922) ISRM 18,09,17.04	K&E 4095-3 Merchants Rule sn218002 Made in U.S.A. - Pat. 1,930,852, Pat. 8.17.16 Note: All-Glass Cusor Front Scale: DF [ CF, C ] D Back Scale: [ Index, CI ] D Gift Of Donald S. Bachelor collection, 1915 manual, 2.35MB PDF
K&E 4095-3 Merchants Rule with Magnifying Cursor (1922-1935) ISRM 15.09.27.13	K&E 4095-3 Merchants Rule with Magnifying Cursorsn322686 Note: Magnifier mounted on all-glass cursor, Made in U.S.A. - Pat. 1,930,852, Pat. 8.17.16 Front Scale: DF [ CF, C ] D Back Scale: [ Index, CI ] D
K&E 4095-3 Merchants Rule (1936-1941) ISRM 11.11.10.01	K&E 4095-3 Merchants Rule s/n 519731 Made in U.S.A. - Pat. 1,930,852 . Note: Improved Cursor. Front Scale: DF [ CF, C ] D Back Scale: [ Index, CI ] D
K&E N<4100> Stadia Slide Rule AGC (1926) ISRM 22.03.01.21	K&E N-4100 Stadia Slide Rule sn160503 1926 Made in U.S.A. for Surveyor's. All-glass cursor lens. Note model number marking: N<4100> Front Scale: 10in // R [ H, HC, V ] A || 25cm Back Slide: [ C, B ] Back: Instructions for horizontal distance and elevation. Gift Of Philip E. Stanley, Worcester, Mass.
K&E <N-4100> Stadia Slide Rule NIC (1937) ISRM 14.07.02.10	K&E N-4100 Stadia Slide Rule sn623559 1937 Made in U.S.A. for Surveyor's. New Improved Cursor.. Note model number marking: <N-4100> Front Scale: 10in // R [ H, HC, V ] A || 25cm Back Slide: [ C, B ] Back: Instructions for horizontal distance and elevation. Gift Of Ed Millis, dallas, Texas
K&E 4100 Stadia Slide Rule (new design - 1955) ISRM 10.03.02.02.X	K&E 4100 Stadia Slide Rule sn967727 1955 Made in U.S.A. for Surveyor's. New frame (stock) design, Plastic back with conversions, narrow cursor with plastic lens Front Scale: 10in // R [ H, HC, V ] A || 25cm Back Slide: [ C, B ] Well: Instructions for horizontal distance and elevation. Back: Conversions Donated by Robert C. Eaton, Boulder, Colorado
K&E 4105 Webb's Stadia Rule (Cylindrical)	See Cylindrical Slide Rule gallery
K&E 4108 Military Slide Rule (American Blueprint) ISRM 14.09.21.04	K&E 4108 Military Slide Rule (American Blueprint) c1950 Made in U.S.A. for the US Army - 10", Similar to Short Base Triangulation SR Front Scale: Opposite Angle Deg, Mils [ Apex Angle "t" mils, deg, CI, base C ] Range D, A Back Slide: [ Sin, Sin Tan, Cos, C ] Gift of Edward T. Wright of Odenton, Maryland. Edward Wright (on left) received his B.A. with Honors in Mathematics from Rhodes College (formerly Southwestern at Memphis) in 1968, followed by his Ph.D. in Mathematics from the University of Notre Dame in 1973. Ed's thesis was on compact Kahler manifolds that admit Killing vector fields. After graduate school Dr. Wright was a visiting assistant professor at Notre Dame for one school year,then worked as an (applied) mathematician for the Department of Defense for 39 years. Ed retired 2014. Ed writes: "The only time I ever used a slide rule was in high school physics (1963/64). I started collecting them off of Ebay in the 2004/5 time period. I continue to marvel at how much was accomplished with these instruments. I am in the process of down sizing the modest collection that I have, and wanted them to go some place that will preserve this part of the technology."
K&E 4128 Nordell Sewer Slide Rule (Version 2) ISRM 21.04.07.01.X	K&E 4128 Nordell Sewer Slide Rule (Version 2) Made in U.S.A. by K&E - c.1928 Front Scales: Vel. Ft. Per Se., CU. Ft. Per SEC. [ Parts Full, L Length, H Drop in Ft, ] N (6 scales). Back Slide: blank. Back Advertising: Link-Belt Sewage Disposal Equipment, Philadelphia - Chicago Belonged to George Washington Champe, Engineer, (1868-1937) Gift Of Katherine Champe Jones of Vienna, Virginia. (Granddaughter). Geoerge W. Champe was born in Dublin, Indiana, and was an 1893 graduate of of the University of Indiana. Soon after graduation he became the Bloomington, Indiana City Engineer. He spent one year at the Rose Polytechnic Institute and in 1900 opened his Toledo office for private engineering practice. He married Harriet May Noble (1872-?) of Indianapolois, Indiana. His arrival in Toledo coincided with a boom in the development of interurban electric railroads and he became a specialist in that field. In those years he devoted much time in pavement design and construction. He was a part time instructor in the University of Toledo engineering college,, vice chairman of the Toledo City Plan commission, chairman of the Lucas county planning commmision, and assisted the city civil service commision in the examination of applicants for engineering positions. He advised the city in its water supply and sanitation engineering problems, and was active in the development of the Transcontinental airport and in harbor projects. At the time of his death, at age 69, he was on the way home from working on a rail project in Missouri. One of his more notable projects, still standing today, is the High Blue Boy Anthony Wayne Bridge which is a high level three-span steel suspension bridge in Toledo, crossing the Maumee River. and was completed in 1931. George Champe's name can be found on the plaque commerating the bridge engineers.
REF K&E 4132_Cranes Sewer Slide Rule	K&E 4132_Cranes Sewer Slide Rule Made in U.S.A. - c.1921 Front Scales: Q Cu.Ft. Per Second (Egg Shaped) [ Coefficient Slope Per 1000 / Horizontal Diameter ] Acres / Slope Per 100 Back Scales: Cu.Ft. Per Second (Circular) [ Parts Full Diameter ] Slope Per 100 Scan donated by Paul Tarantolo, Houston, Texas
S450 K&E 4133 Roy Lance Electrical	K&E 4133 Roy Lance Electrical sn 120 Made in U.S.A. - c1915 - narrow stock Front Scale: 8in // A [ B  0-260 mid scale, C] D || B&S Gauge Back Scale: [ S, L, T ] 20.5cm Well(groove):Ampere Carrying capacity of wire: 1st row - Rubber coated wire 2nd row - weather proof wire 3rd row - rubber covered cable 4th row - weather covered cable (3rd & 4th row gauge marks read hundred thousand circular mils) Original owner: J.S.Wilson - Case marked:Aug 1915
K&E N4133 Roy Lance Electrical 8-inch (1940) ISRM 22.03.01	K&E N4133 Roy Lance Electrical 8-inch sn795150 1940 Made in U.S.A. - wide stock Front Scale: 8in // A [ B  0-260 mid scale, CI, C] D || B&S Gauge Back Scale: [ S, L, T ] 20.5cm Well (groove): Ampere Carrying capacity of wire: 1st row - Rubber coated wire 2nd row - weather proof wire 3rd row - rubber covered cable 4th row - weather covered cable (3rd & 4th row gauge marks read hundred thousand circular mils) Gift Of Philip E. Stanley of Worcseter, Massachusettes
REF K&E 4135 (Engine) Power Computing	K&E 4135 (Engine) Power Computing - 2 Slides Made in U.S.A. - c.1915 Front Scale: blank [ 1913 Commemerative ] A [ B, C] D Back scales: I.H.P/B.H.P [ Strokes/Min./R.P.M. ] [ Stroke/Brake Radius M.E.P/Net Wt. ] Cyl Dia Original Owner: J. B. Ferguson - embossed in gold leaf on case Scan donated by Paul Tarantolo, Houston, Texas

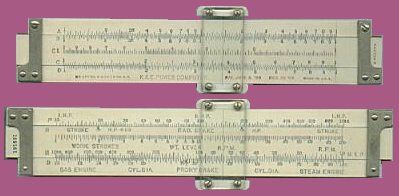

REF K&E N4135 (Engine) Power Computing	K&E N4135 (Engine) Power Computing - Duplex Made in U.S.A. - c.1922 (REF McCoys K&E Catalogs) Front Scale: A [ B, CI, C] D Back Scale: P(IHP/BHP) [ R(Cyl Dia/Stroke/AHP), W(WT.Lever/RPM) ] D(Gas/Steam) Archive
K&E 4138 Morrison Radio Engineers Slide Rule (1938) REF 1.9MB PDF	K&E 4138 Morrison Radio Engineers Slide Rule (1938) sn659773 Made in U.S.A. - Designed by John F. Morrison Boonton, N. J., for Bell Telephone Laboratories, Whippany, N.J. He wrote 4 technical papers for the IEEE Journal between 1937 and 1948 while at Bell Labs. At Bell He was the author of 1940 US patent #2,359,916 Ultra Short Wave Antenna System . In 1953 he co-authored Canadian patent #494,130 Power and Impedance Monitor for Western Electric Co. in New York. In 1958 he filed a US Patent # 2,853,173 Capacity-Controlled Electronic Coil Totalizer while working at Rowe Manufacturing,Whippany, N.J. Note: According to Clarck McCoy's Catalog, this model only appeared in the 1939 K&E catalog. Front Scale: L, F, A [ B, CI, C ] D, T Cot, ST, S Cos Back Scales (For convenience, the propagation scales are designated by standard abbreviations at the right hand end of the slide rule scales): Scale 1 - db = decibels Scale 2 - E, μv/m = field intensity in microvolts per meter Scale 3 - σ , emu = soil conductivity in electromagnetic units Scale 4 - f, Mc = frequency in megacycles Scale 5 - P, Watts = power Scale 6 - Ed = the product offield intensity and distance Scale 7 - d, Miles = distance Scale 8 - ATT. I FACTOR = attenuation factor I Scale 9 - ATT. II FACTOR = attenuation factor II Note: The field intensity produced by a radio transmitter and vertical antenna is: E = ((K * √P)/d) * ATT. FACTOR Original Owner: "A.C. Anderson, Phoenix Arizona" on upper stock., "CAL.INST. OF TECH." on sleeve. Archive - John Reed Collection. Original scan by Michael O'Leary.
K&E Cooke Radio Rule - sn858377 (No Model Number)(1942-1957) ISRM 18.09.17.02.X Wikipedia Entry "Cooke's Slide Rule" Response to inquiry from Nelson M Cooke Lieut.(JG) USN himself. Radio-Craft, January 1943	K&E Cooke Radio Rule - sn858377 (No Model Number) Made in U.S.A. - Produced from 1942 through 1967 by K&E, Designed by Nelson M. Cooke, Lieut.(JG) USN Anacostia Station, Washington, D.C.., Note, The SRT scale replaced the ST scale around 1958. In 1958-1959 the model number was changed to 68-1460 and 68-1465. Front Scale: L, DF [ CF, CIF, CI, C ] D, 2π Back Scale: LC, A [ B, T Cot, ST, S Cos ] D, DI Original Owner: marking RMS No.53 on side of stock Gift of Donald J. Bachelor Collection Nelson Magor Cooke - (1903-1965) was a leader in developing electronic schools of the United States Navy, the recipient of the Navy Commendation Medal and Medal for Humane Action, a post-war engineering entrepreneur, and an author of books on applied mathematics and basic electronics. He enlisted in the U.S. Navy as an Apprentice Seaman on 22 November 1920, and progressively rose in rank through Petty Officer and Warrant Officer to Lieutenant Commander before retiring on 1 May 1951. After leaving the Navy, he formed and operated the firm Cooke Engineering. in Alexandria, VA and later San Mateo, CA. His company was acquired by Dynatech in 1968. Cooke began professional writing in 1934, and continued with multiple-edition technical books throughout his life. He developed the Cooke Radio Slide Rule (K&E model 4139) which was produced by K&E from 1942-1967.
K&E 4139 Cooke Radio Rule - sn237717 c1957 ISRM 22.02.01.01	K&E 4139 Cooke Radio Rule - sn237717 c1957 Made in U.S.A. - Designed by Nelson M. Cooke, Lieut.(JG) USN Anacostia Station, Washington, D.C.Produced from 1942 through 1967 by K&E, Note, The K&E logo on the slide.This specimen is prior to the ST scale being renamed SRT around 1958. Front Scale: L, DF [ CF, CIF, CI, C ] D, 2π Back Scale: LC, A [ B, T Cot, ST, S Cos ] D, DI Original Owner: Dennis Harvey Pack. Note the pouch riveted onto the sleeve flap. This was his own creation to keep track of the magnifier. Gift of Dennis H. Pack of Winona, Minnesota. in honor of Robert W. Young. Dennis Harvey Pack (1939 - ) was given this slide rule by Chief Warrant Officer (W4) Robert W. Young in 1957 at USCG Base Alameda, California while Dennis was working in the electronics repair shop. Dennis was trained as an Electronics Technician (ET PO3) and served in the U.S. Coast Guard from 1956-1960.. In 1962 he worked at KUED operated by the University of Utah as a camera operator and later as a producer-director in 1967. He married in 1968, then moved to South Dakota and worked for 16 years as a program director at the local television station. He became a Mass Communications teacher at Winona State University in 1978 and was a member of the faculty senate. He developed the Wings Electronic Portfolios for students. He worked as a professor until his retirement in 2003. More at the Winona Living History Project
K&E 4139 Cooke Radio Rule (1942-1957) ISRM 14.09.21.02	K&E 4139 Cooke Radio Rule - sn936496 Made in U.S.A. - Designed by Nelson M. Cooke, Produced from 1942 through 1967 by K&E, Front Scale: L, DF [ CF, CIF, CI, C ] D, 2π Back Scale: LC, A [ B, T Cot, ST, S Cos ] D, DI Original Owner: marking RMS 659 on slide and sleeve. Gift of Edward T. Wright
K&E 4139 Cooke Radio Rule (SRT scale) (1958-1959) ISRM 18.04.06.41	K&E 4139 Cooke Radio Rule (SRT scale) - sn452225 Made in U.S.A. - Designed by Nelson M. Cooke, Produced from 1942 through 1967 by K&E, Note: ST scale becomes SRT. exposed laminated edges Front Scale: L, DF [ CF, CIF, CI, C ] D, 2π Back Scale: LC, A [ B, T Cot, SRT, S Cos ] D, DI Gift of Leroy Hausler Collection
K&E 4143 Kissam Stadia (for Surveyors) ISRM 18.04.06.21.X	K&E 4143 Kissam Stadia (for Surveyors) sn399383 Note: Gives horizontal distance and difference in elevation. Made in U.S.A. - 1960-1962 Front Scale: 10in // R1 [ V1, HC, V2 ] R2 || 25cm Back: Conversion Factors Gift of Leroy Hausler Collection
K&E 4160 Chemists Rule 1916-1921 ISRM 22.03.17.01.X	K&E 4160 Chemists Rule Lot #98 Made in U.S.A. All-Glass Cursor 1916-1921 Front Scale: SOUGHT [ GIVEN, CI] D (Oxide Elem.) Back Scale: SOUGHT [ GIVEN, C] D< (Acid, Base, Salt) Gift of George H. Kennedy Jr of Venice, Florida. BelongedToFatherGHK George Hugh Kennedy was born on 1 July 1908, in DuBois, Clearfield, Pennsylvania, United States, his father, Frank J. Kennedy, was 27 and his mother, Maud Jones, was 22. He lived in Buffalo, Erie, New York, United States in 1920. After high school he studied at Carnegie Institute of Technonlogy (now Carnegie-Mellon) in Pittsburg, Pennsylvania in the early 1930's, which is where he probably purchased this slide rule. He spent most of his working career with the Rochester and Pittsburg Coal Company in Indiana, PA. He earned a Registered Professional Engineer in Fuel Technology. The newspaper article, which shows him standing next to a 3o-foot drume, describes one of his projects in environmental control in 1967. He died on 9 December 1989, in Indiana, Pennsylvania at the age of 81.
K&E 4160 Chemists Rule ISRM 04.11.03.01	K&E 4160 Chemists Rule sn284743 Made in U.S.A. Front Scale: SOUGHT [ GIVEN, CI] D (Oxide Elem.) Back Scale: SOUGHT [ GIVEN, C] D< (Acid, Base, Salt)
K&E Chemical Slide Rule REF	K&E Chemical Slide Rule Made in U.S.A. Front Scale: C2S (A Scale), CaO [ S1O2, Fe2O3, SO3 ] Ca S, Ca S (B Scale) Back Scale: Fe2O3, C4AF, AI2O3, C4AF, SO3, CaSO3 Archive - Scan by Clay Castleberry, California
Beatly I-Q Slide Rule REF	Beatly I-Q Slide Rule Made in U.S.A. by K&E, distributed by Edward E. Babb & Co. Front Scale: Mental Age [ Chronological Age ] Intelligence Quotient Back: Directions Notes: Copyrighted by Dr. Bancroft Beatley in 1922 while working on his doctorate thesis.(See Slide Rule Who's Who. The slide calculator is an unusual (certainly for K&E) single-purpose device for determining Intelligence Quotient (IQ) given a youngster's physical age and his mental age (apparently determined by a standardized test). More specifically, the rule is designed for use in calculating the IQ of young people from ages 3 to 18 with IQs ranging from 30 to 170. Archive - Photo by Tom Wyman Collection, California as published in the Journal of the Oughtred Society JOS 2012, Vol. 21.2
REF K&E 4175 Kurtz Pyschrometric Rule Instructions (1MB PDF)	K&E 4175 Kurtz Pyschrometric Rule Made in U.S.A. - c.1936 Front Scale: 1, 2 [ 3, 4, 5 ] 6, 7, 8, 9, 10, 11 1 - Total Heat / Lb. Dry Air Sat 2 - Wet Bulb and Dry Bulb 3 - Dew Point and Dry Bulb 4 - Sensible Heat B.T.U./Lb. Dry Air 5 - Percent Relative Humidity 6 - Dew Point and Dry Bulb 7 - Vapor Pressure In. of Hg 8 - Lbs./Cu. Ft. Dry Air 9 - Lbs. Dry Air / Cu. Ft. Sat. Air 10 - Grains / Lb. Dry Air Sat. 11 - Grains / Cu. Ft. Sat. Air Back: Directions for use Scan donated by Paul Tarantolo, Housston, Texas
K&E Analon 68-1400 Engineering Science Analysis ISRM 23.04.07.01.X	K&E Analon 68-1400 Science Analysis - sn002070 Made in U.S.A. - only 597 made - c1966. Front Scale: V2, V1/2, A [ B, U1/2, U-1, U, C ] D, V, V-1 Back: Dimensional factors Instructions 2.8Mb

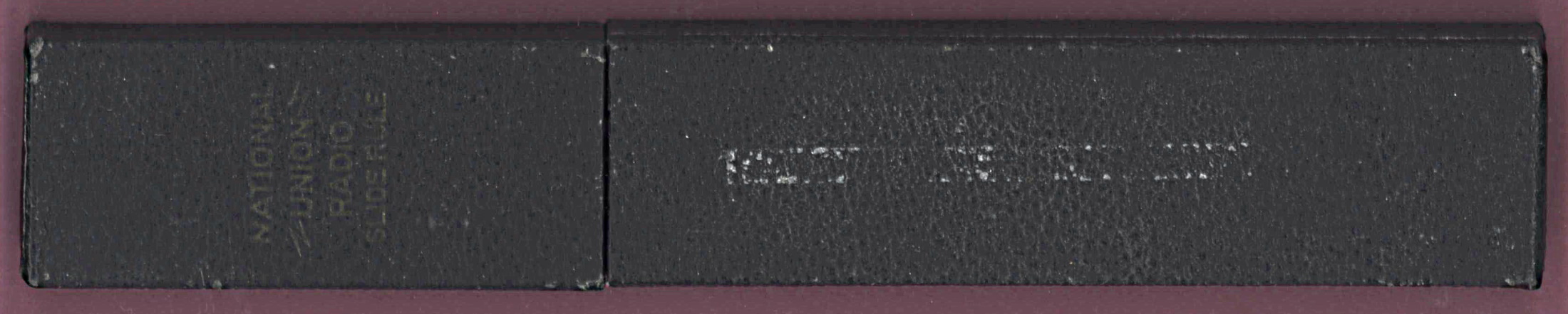

K&E National Union Radio ISRM 22.06.18.03	K&E National Union Radio Made in U.S.A. Front Scale: 4(L or C Reactance) [ 3(Frequency), 2(Inductance)] 1(Capacitance) Back Scale [Resonance Frequency]: Gift Of Michael Frey of Newmarket, New Hampshire. M74 Instructions 1.92Mb
K&E Associated Spring Belleville Spring Washer Computer S409	K&E Associated Spring Design - Belleville Spring Washer Computer Made in U.S.A. by K&E for Associated Spring 1967 Front Scale: Load Flat [ OD, OD/ID (2 scales), h/t, E/1-σ2 ] Thickness Back Scale Load Flat [ OD, OD/ID (4 scales), h/t, E/1-σ2 ] Stress Archive - Scan donated by Jack Rababeh, engineer at Associated Spring M145 Instructions 5.69Mb See the Pickett and United States galleries for the ASC branded spring slide rules.
K&E Brick-O-Meter REF	K&E Brick-O-Meter Made in U.S.A.for Mackensen C. Co., Inc., St. Louis, MO. Scales: Q-Quantity [ M-Material H-Height ] L-Length Scan donated by Paul Tarantolo, Houston, Texas
