Faber-Castell 390 |

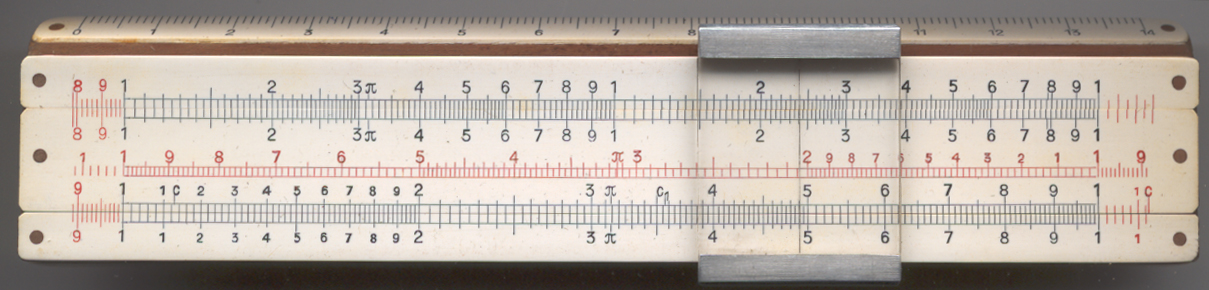

Front |
![](fc%2056%20390%20front%20medium.jpg) |

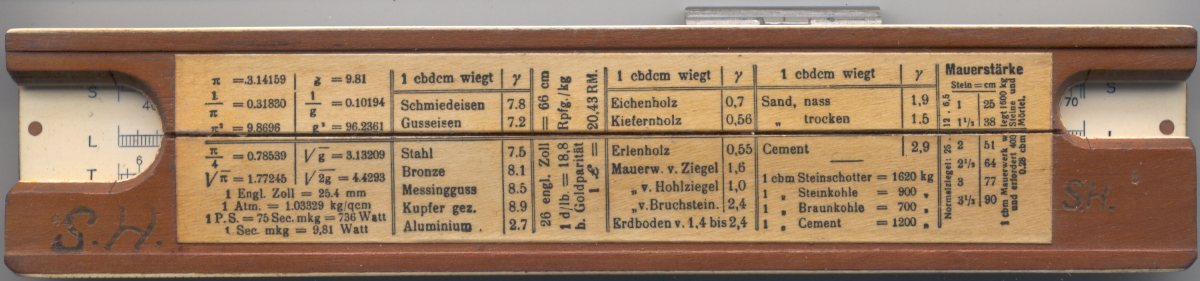

Back |
![](fc%2056%20390%20back%20medium.jpg) |

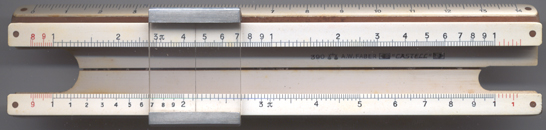

Front without slide |
![](fc%2056%20390%20front%20open%20medium.jpg) |
Back of the slide |
![](fc%2056%20390%20slide%20back%20medium.jpg) |
Bottom of the slide |
![](fc%2056%20390%20bottom%20medium.jpg) |

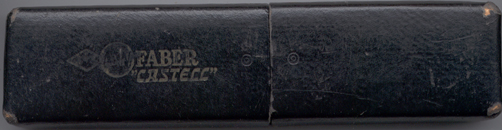

Box |
![](fc%2056%20390%20box%20medium.jpg) |
|
|
Length |
15 cm |
Number of scales |
10 |
Country of origin |
Germany |
Country of manufacturing |
Germany |
Year of manufacturing |
1942 |
Status of the slide rule |
Near mint |
Material of the slide rule |
Celluloid on wood |
Type of cursor |
Very special aluminium with glass cursor, wit an
indicator at the bottom of the slide rule for the 3 decades log
scale. |
Status of the box |
Normal signs of use |
Type of box |
|
Status of the manual |
None |
Collection number |
56 |
Further comments |
This 390 has a rahter simple scale
arrangement with the exception of the 3 decade log scale at the bottom
that puzzles me. Such a scale I have only seen on some of the electrical
slide rules of Faber-Castell. On the back
one of the owners has carved his initials: S.H. |
|
